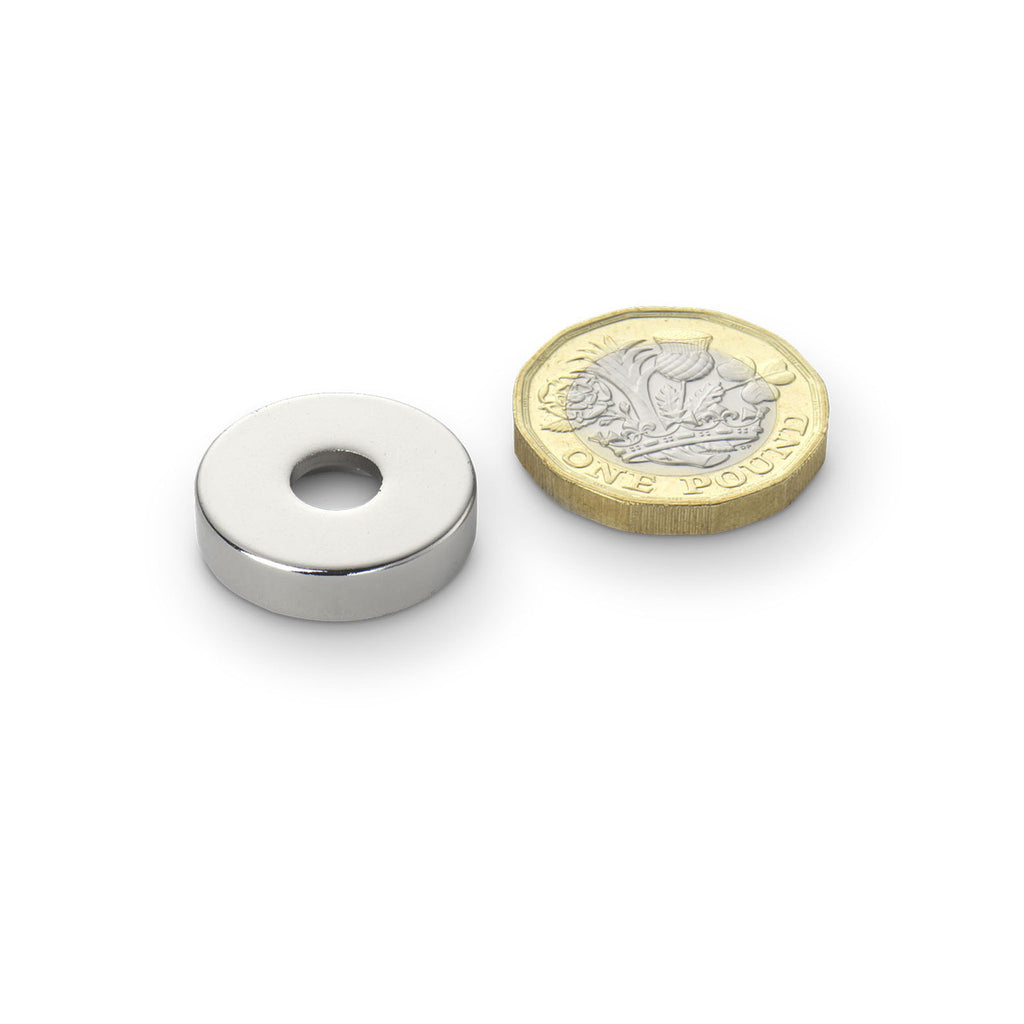

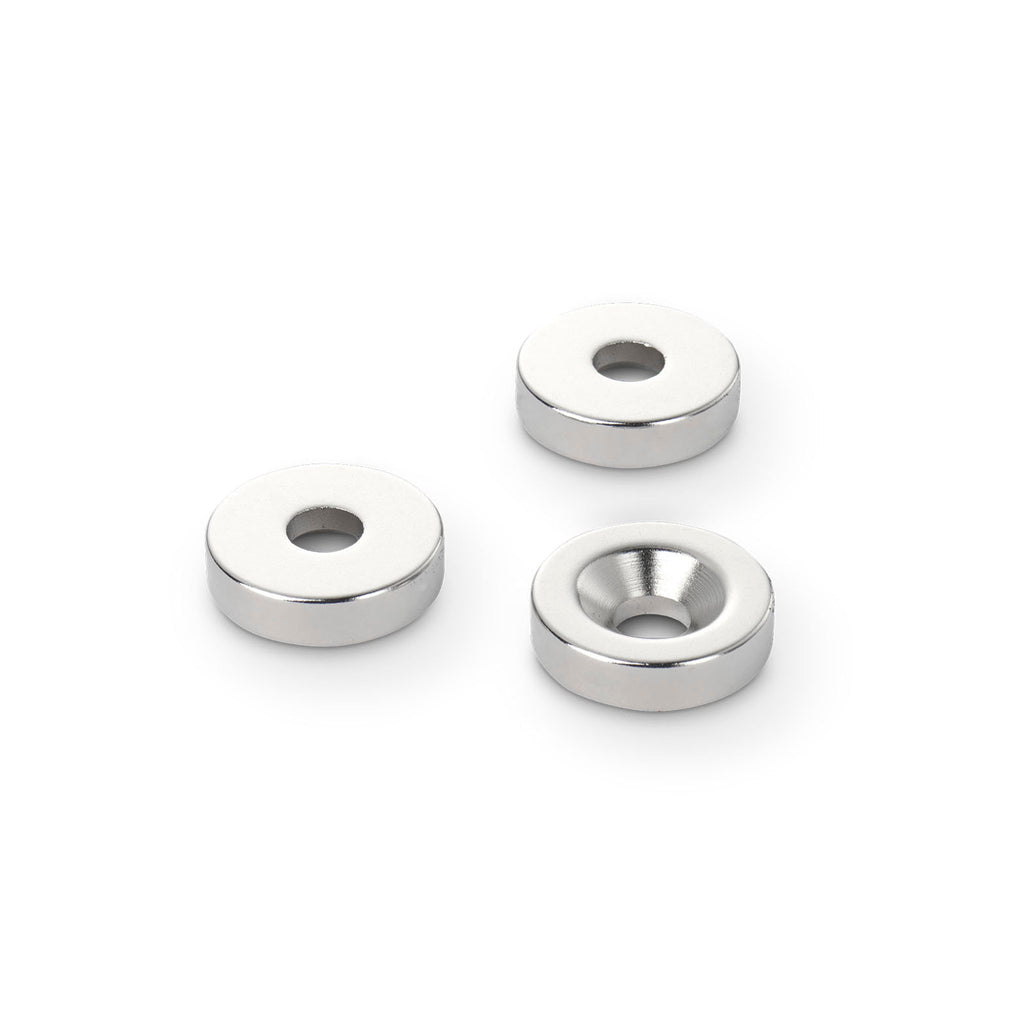

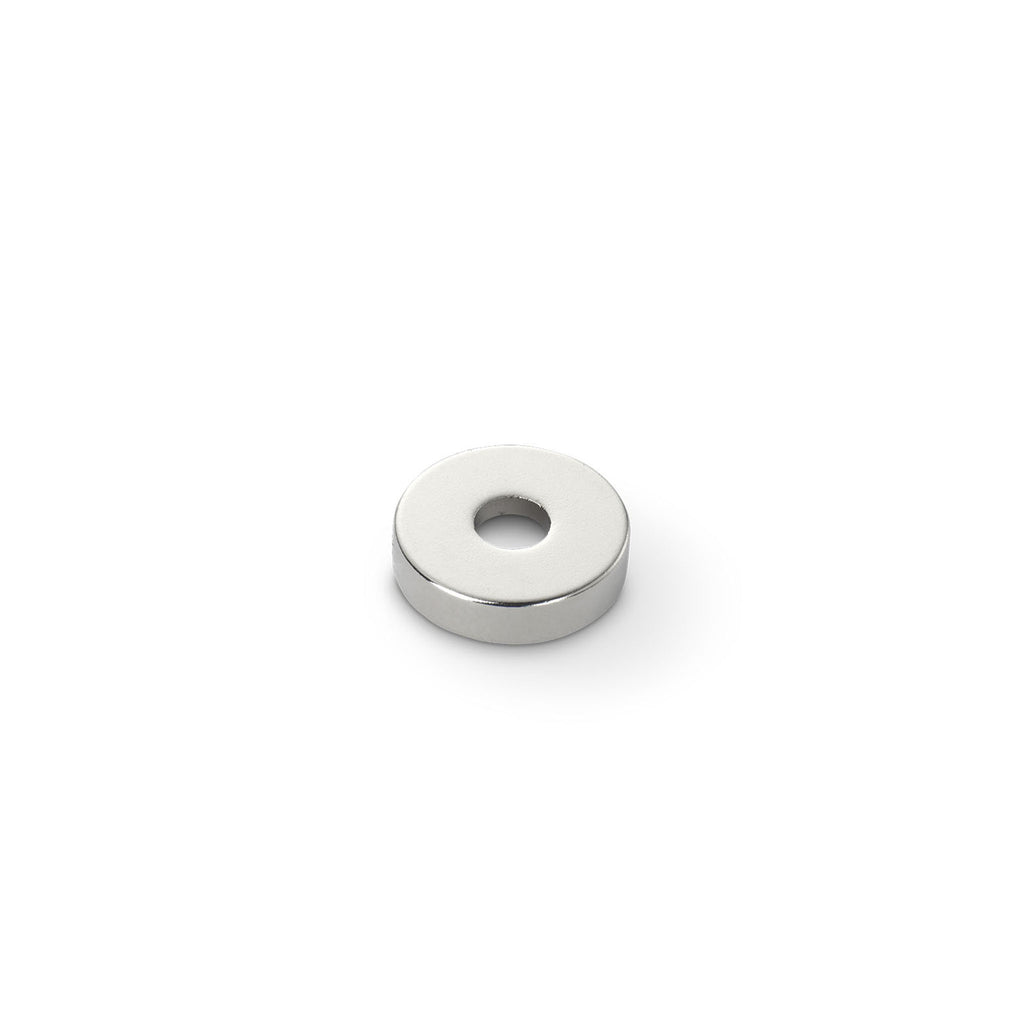

This supaneo Neodymium Ring is N35 in grade, with a nickel-copper-nickel coating. Fixes onto either steel or magnet to magnet, with a built-in solution for mounting. This particular supaneo Neodymium Ring magnet comes with a dedicated countersunk hole as a north pole for use onto steel, or with the south pole version magnet to magnet. The maximum operating temperature of this magnet is 100℃.
Our supaneo Neodymium Rings are used in numerous industries such as automotive, closures and fastenings, digital printers, engineering, exhibition display design and build, POS, retailing, signage, and visual planning.
Thickness | 5mm |
---|---|
Weight | 10.45g |
Diameter | 20mm |
Inner Diameter | 6.4mm Countersunk (NP) |
Finish | Nickel |
Colour | Silver |
Magnetisation | AXIAL |
Pull Force | 3.538kg |
UOM | Each |
