Neodymium Ring Magnet Countersunk at South Pole, 20mm O/D x 6.4mm I/D x 5mm N35H Nickel Plated (A)
Got questions?
Feel free to get in touch

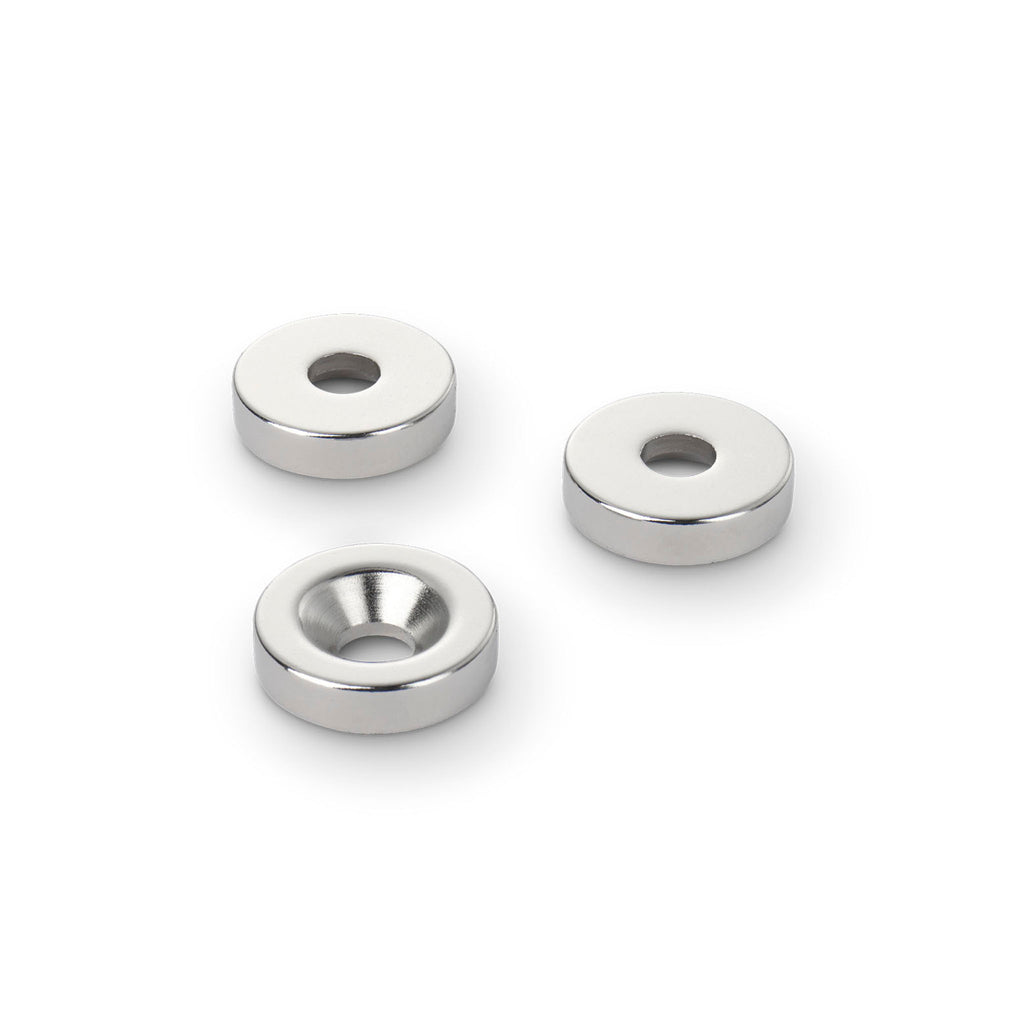

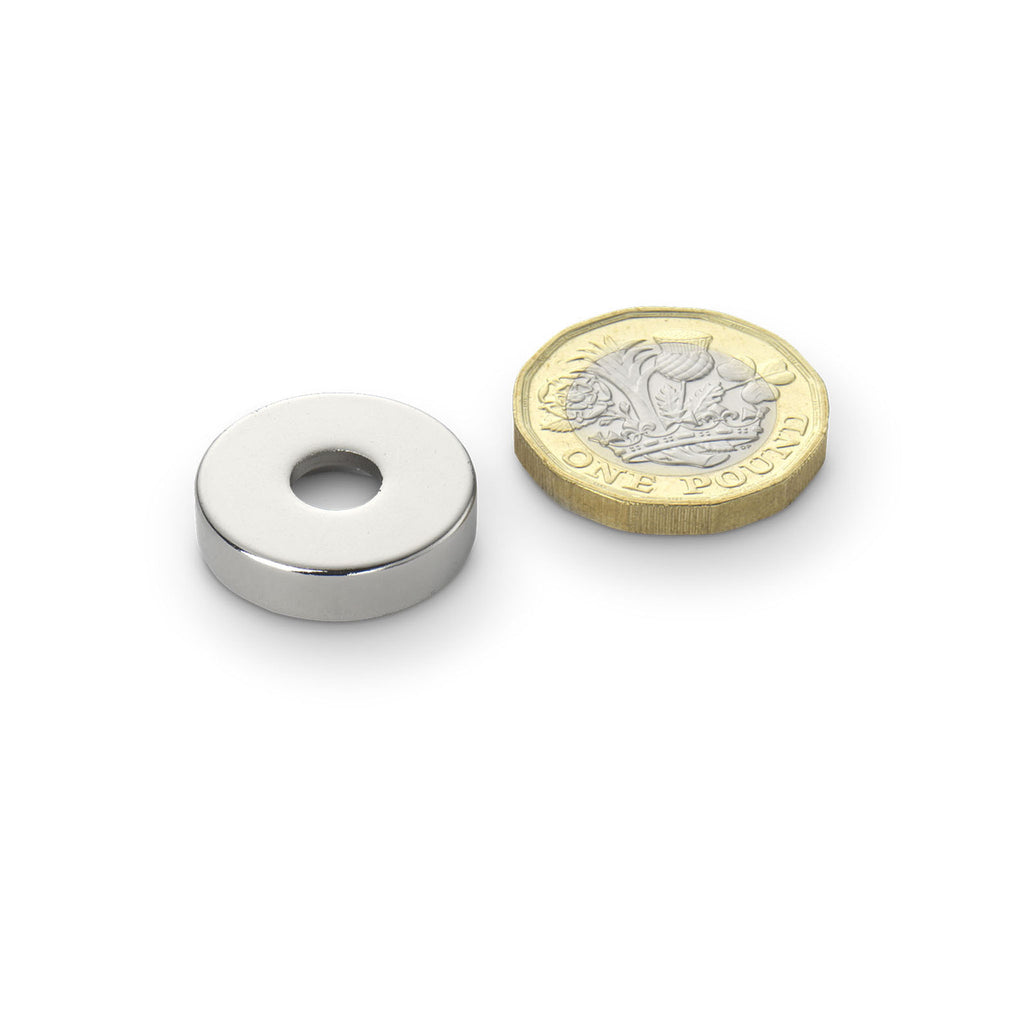

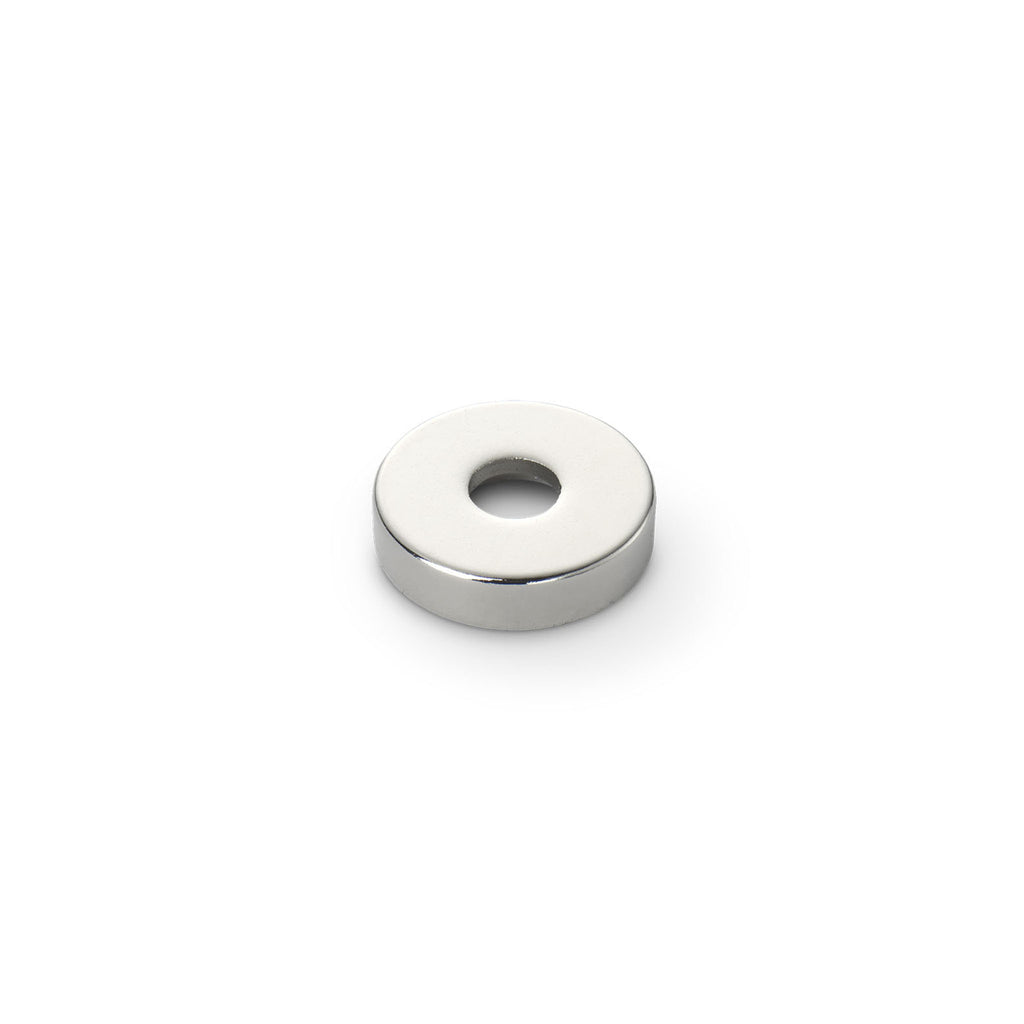

This variant of our Neodymium Ring Magnet is circular in shape and is magnetised through the thickness (AXIAL) with a Nickel-Copper-Nickel coating. N35H in grade, they work best being placed onto steel or magnet to magnet. Countersunk at the South Pole, it comes with a built-in solution for easy mounting. The maximum operating temperature for these magnets is 80℃.
Like many of our Neodymium Ring Magnets, these magnets are widely used across various industries, including automotive, closures and fastenings, digital printers, engineering, exhibition display design and build, POS, retailing, signage, and visual planning.
This product is part of our supaneo range.
| Thickness | 5mm |
|---|---|
| Weight | 10.43g |
| Diameter | 20mm |
| Inner Diameter | 6.4mm |
| Finish | Nickel-Copper-Nickel |
| Colour | Silver |
| Magnetisation | AXIAL |
| Pull Force | 3.538kg |
| UOM | Each |
