The first magfix Neopad was designed by ourselves in 2006 and originally used as a compact holding foot on steel shelves for a nationwide high street sore.

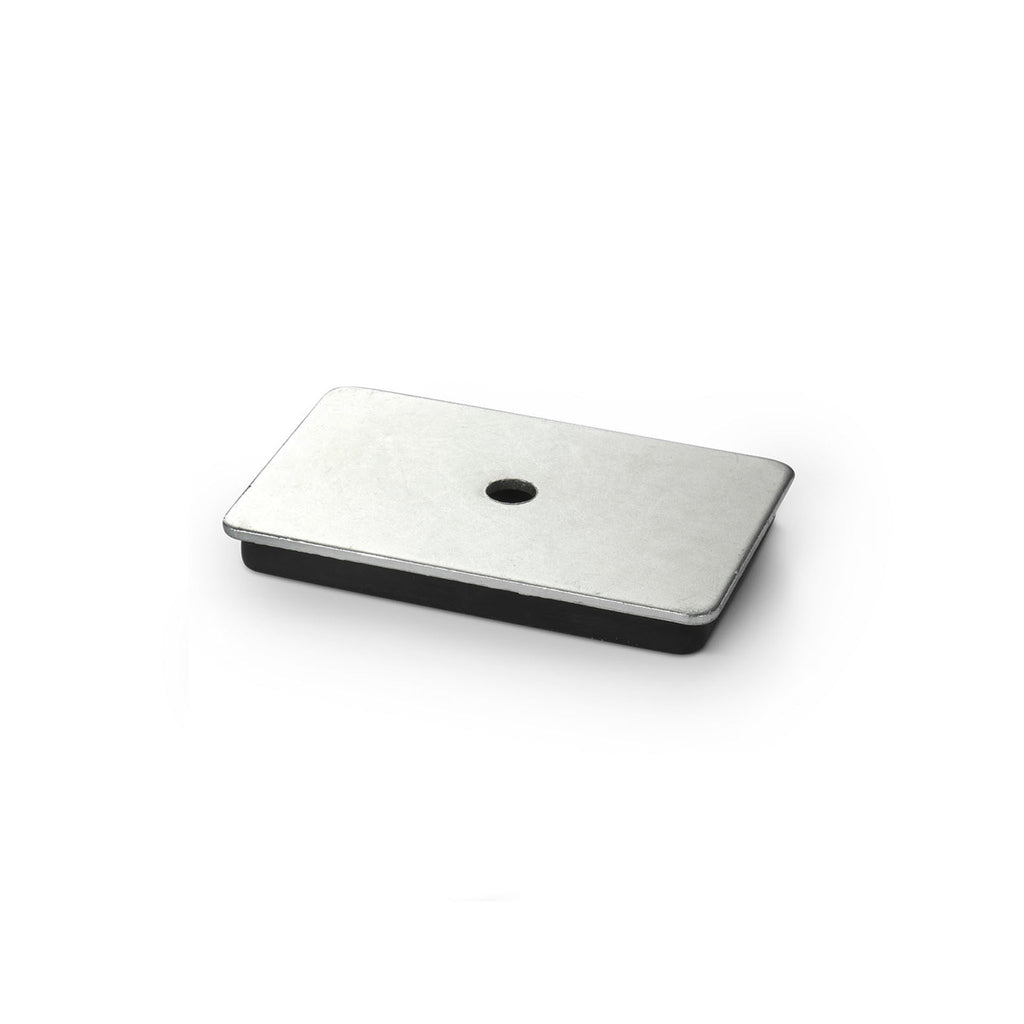

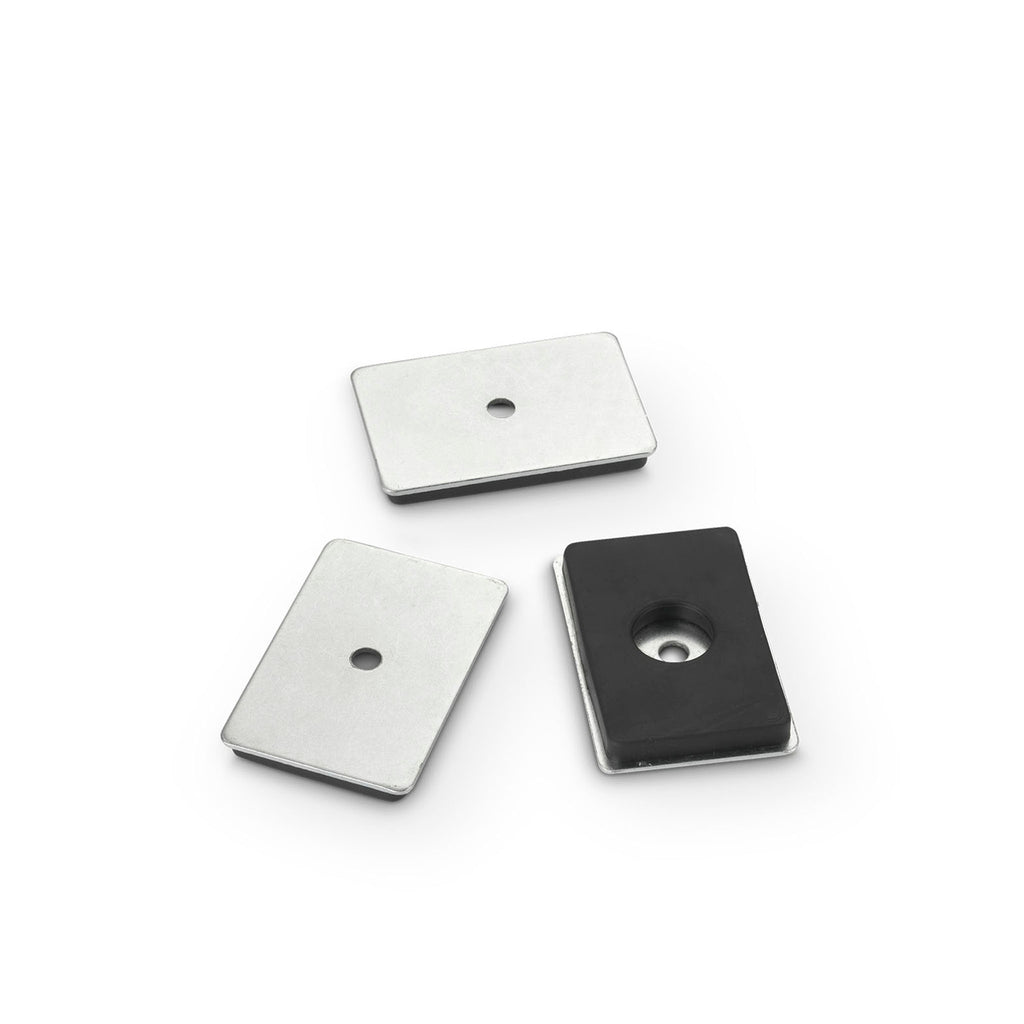

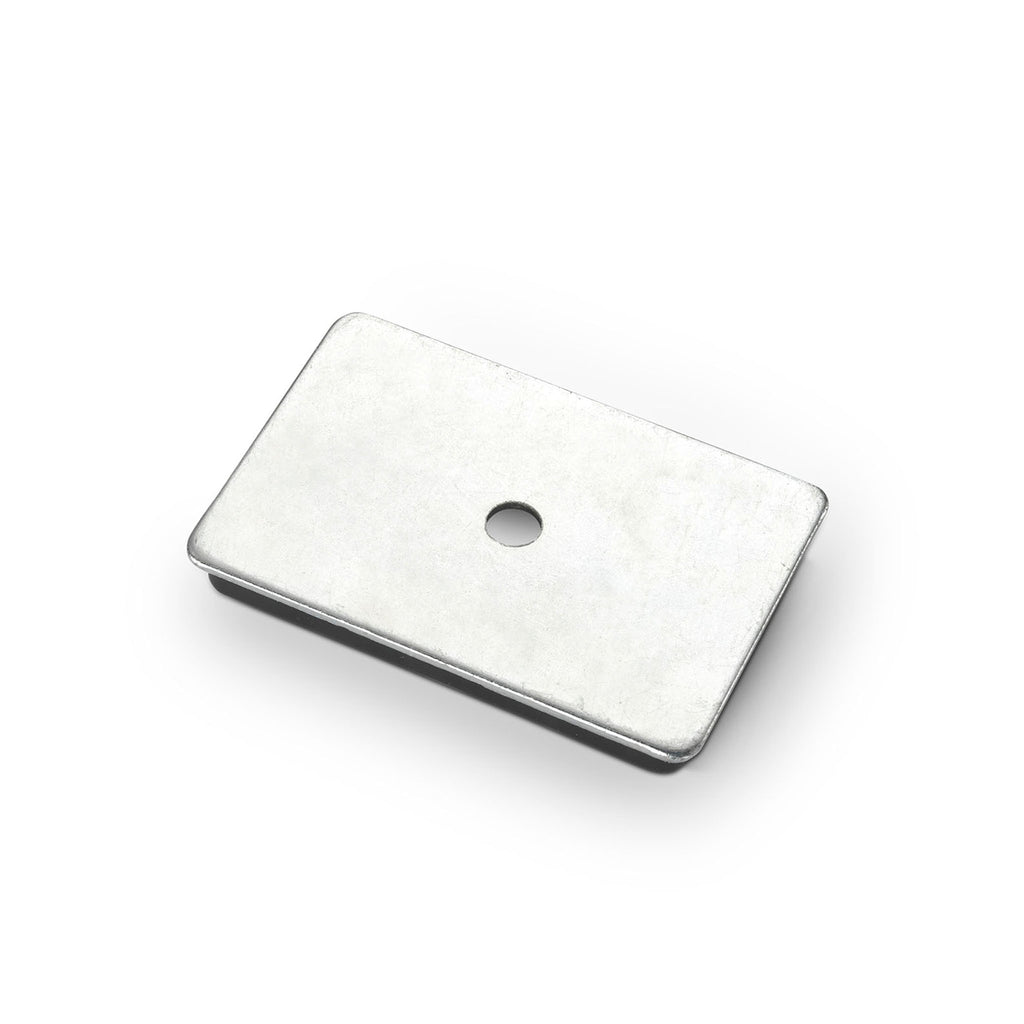

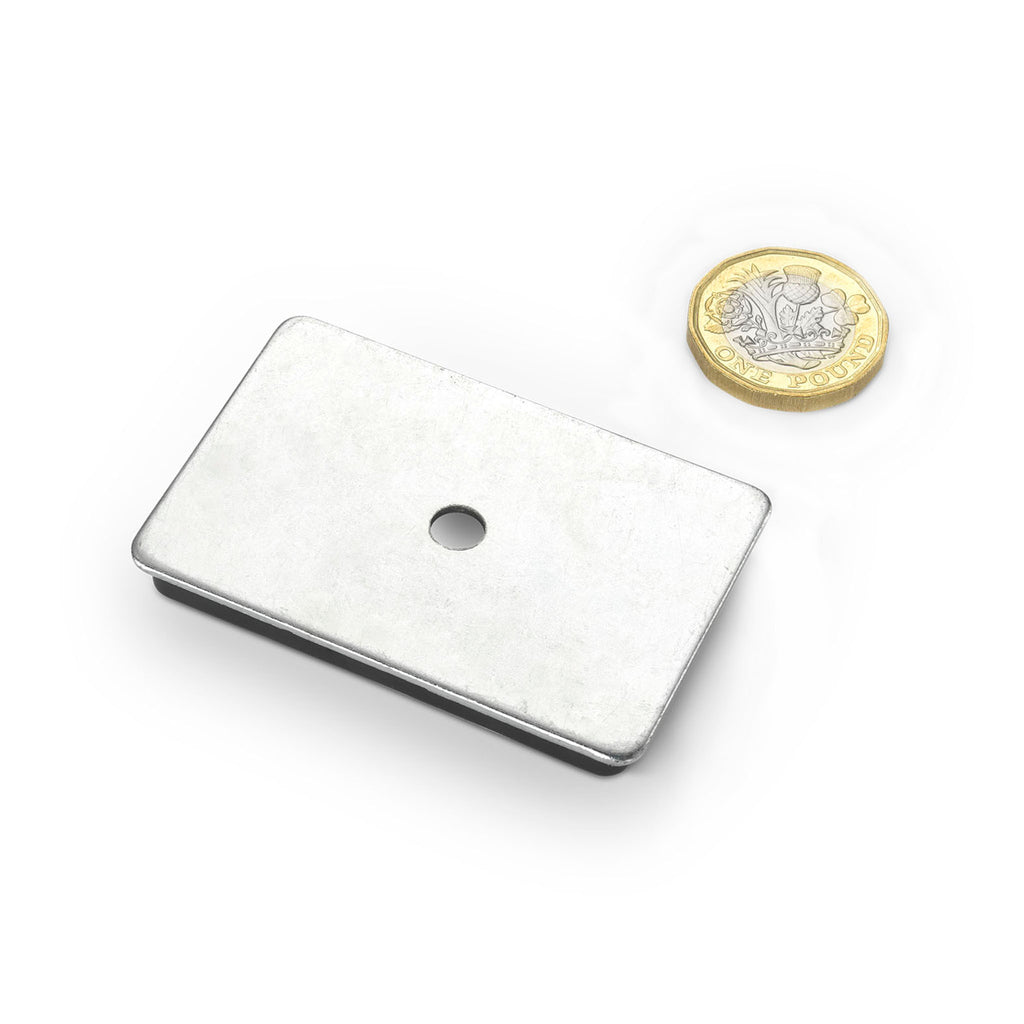

The Neopad 1, designed with a 6mm central hole, is now used extensively in POS display thanks to its combination of intense magnetic force and shear resistance.
Our magfix Neopads are used in many industries such as closures and fastenings, digital printers, engineering, exhibition design and build, POS and retail, signage, construction, and infrastructure shop fitting, vehicle signage, and visual planning.
Width | 40mm |
---|---|
Thickness | 7mm |
Length | 60mm |
Weight | 54g |
Inner Diameter | 6mm |
Finish | Zinc |
Colour | Black/Zinc |
Magnetisation | 4 POLE |
Pull Force | 10 kg |
Holding Force | 7 kg |
UOM | Each |
