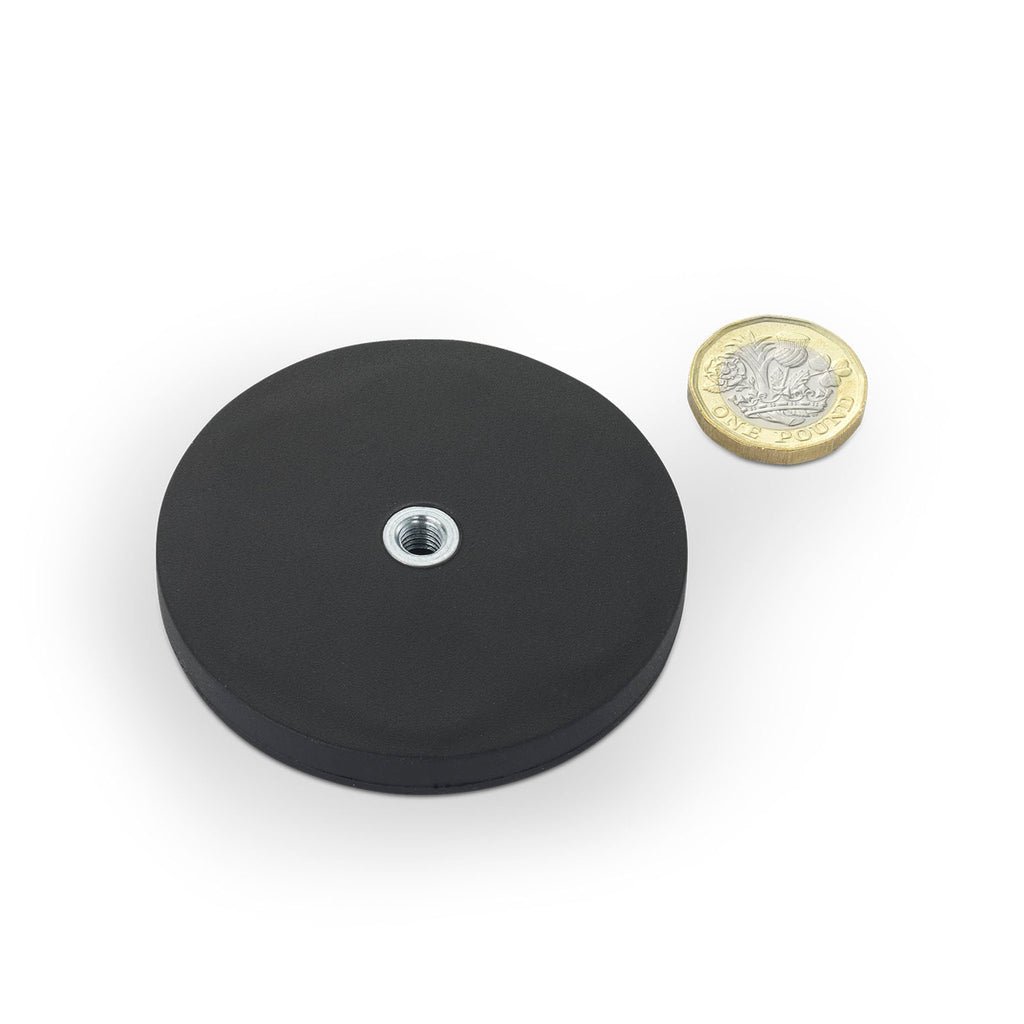

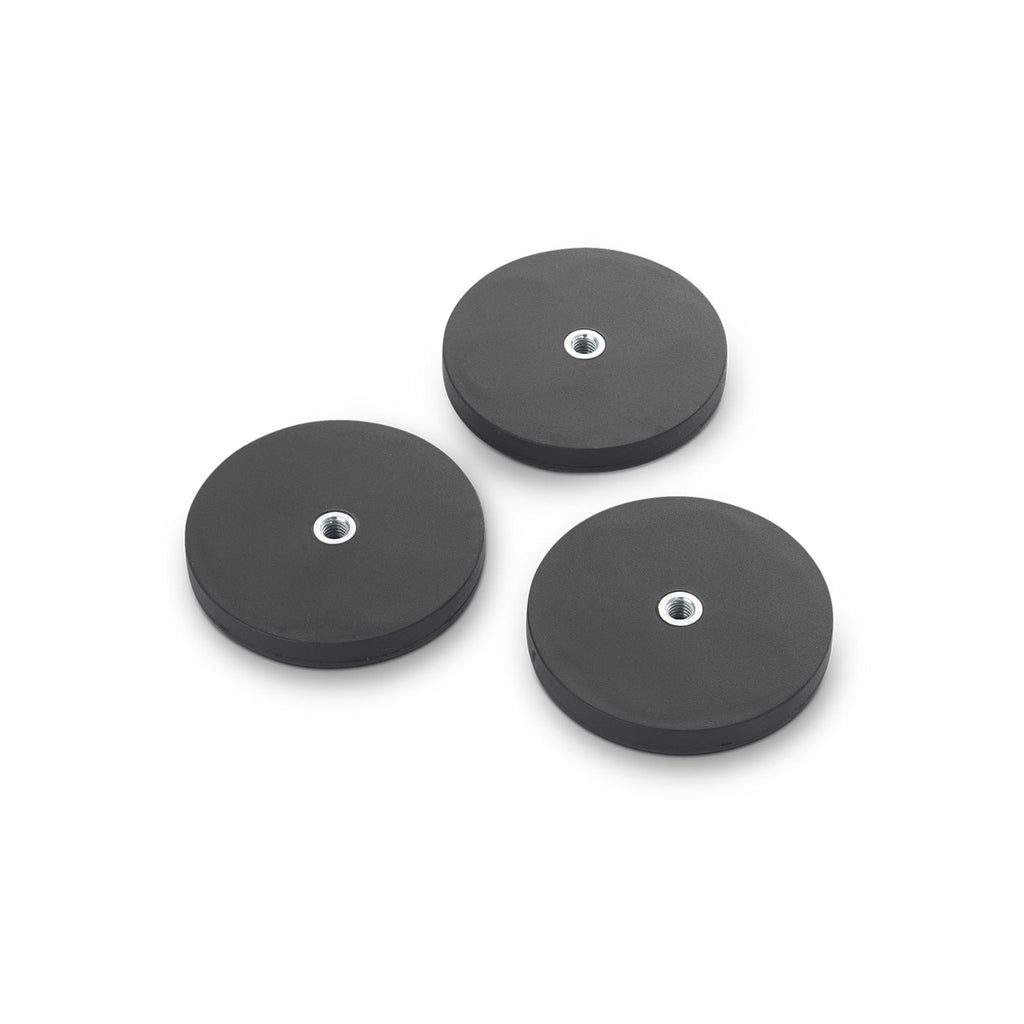

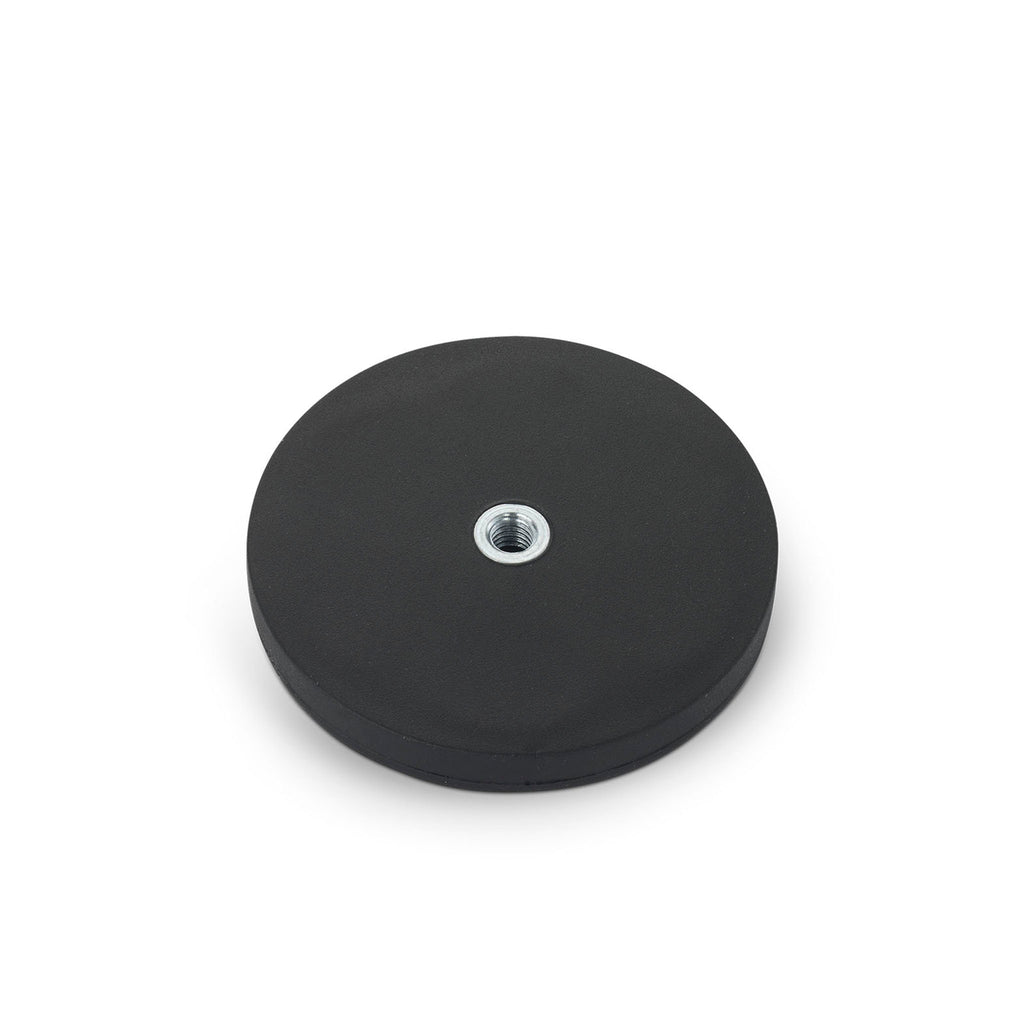

boutique magnets® BLACK 66 O/D x 8.1mm M6 Bush, open ended, flush

ASS/NM/AMD1653-N

Can’t find the size you are looking for? Contact us for bespoke sizes.

Quantity
For quantities of this size please contact our sales team on +44 (0) 114 244 1171.
  • Sale
  • Regular price £5.55
  • excludes VAT

Our popular boutique programme represents a circular family of neo/neoprene combinations with fixing options. In this example, 6 neo discs perform in a closed circuit on a common steel base, providing 20kg of lift plus 8kg of shear resistance.

Our rubber-coated boutique magnets are used in many industries such as closures and fastenings, digital printers, POS, retailing, visual planning, and manufacturing.

Thickness 8.1mm
Weight 104g
Diameter 66mm
Inner Diameter M6
Finish Neoprene
Colour Black
Magnetisation 6 Pole
Pull Force 18 kg
Holding Force 8kg
UOM Each
Product Description

Our popular boutique programme represents a circular family of neo/neoprene combinations with fixing options. In this example, 6 neo discs perform in a closed circuit on a common steel base, providing 20kg of lift plus 8kg of shear resistance.

Our rubber-coated boutique magnets are used in many industries such as closures and fastenings, digital printers, POS, retailing, visual planning, and manufacturing.

Technical Specification
Thickness 8.1mm
Weight 104g
Diameter 66mm
Inner Diameter M6
Finish Neoprene
Colour Black
Magnetisation 6 Pole
Pull Force 18 kg
Holding Force 8kg
UOM Each
