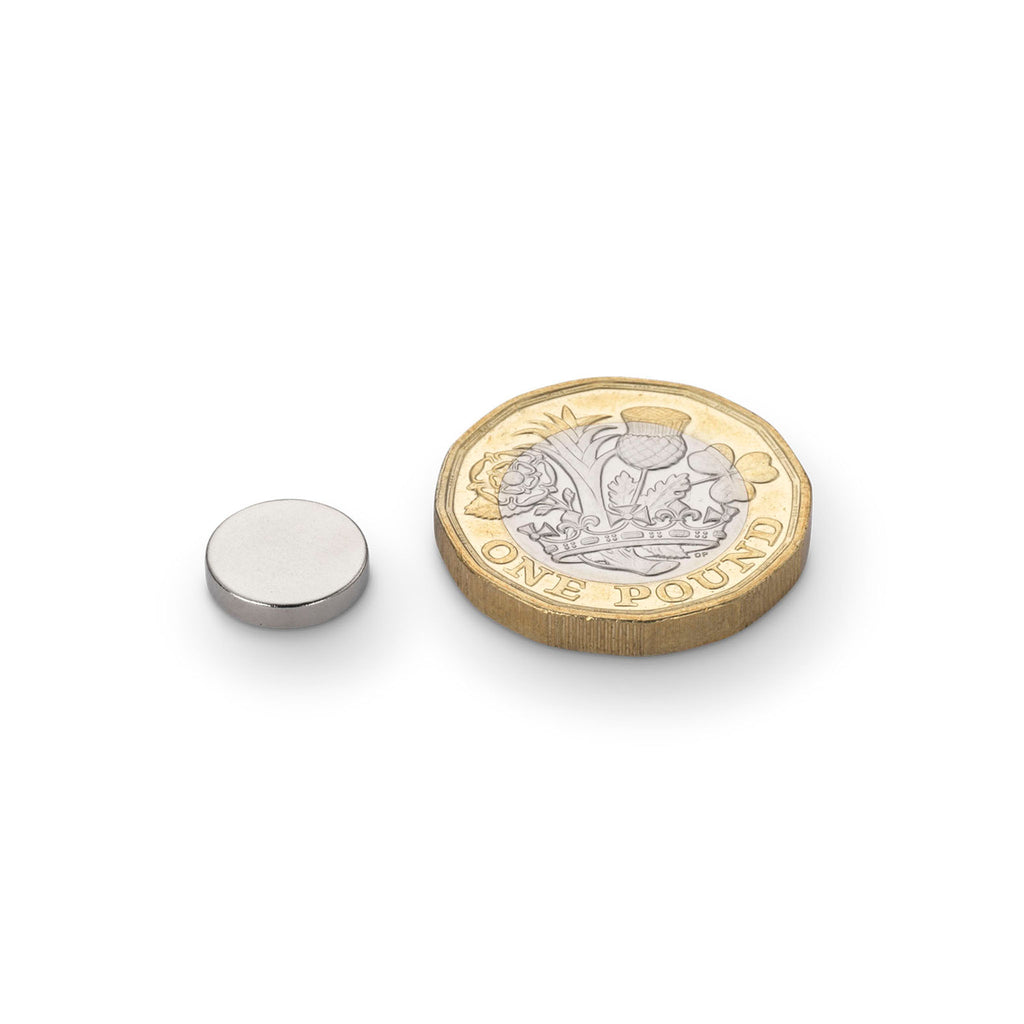

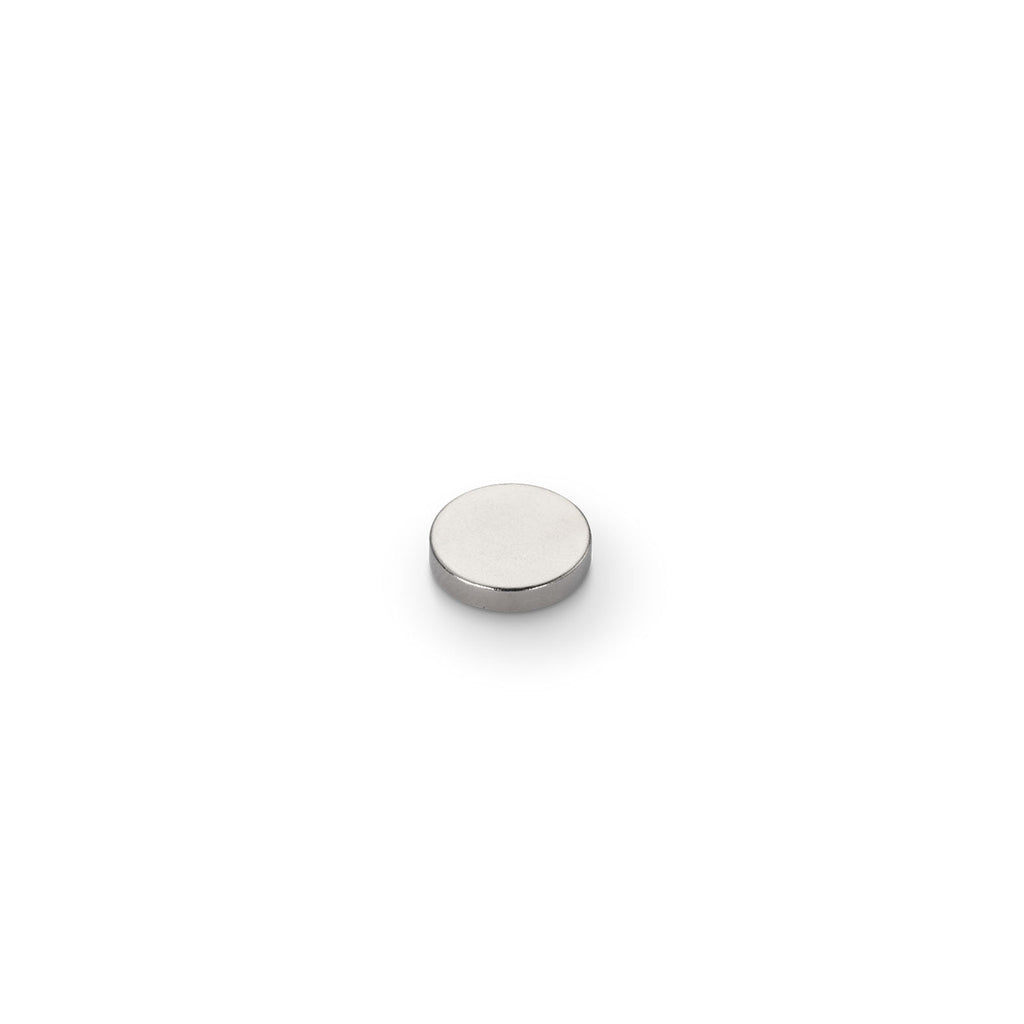

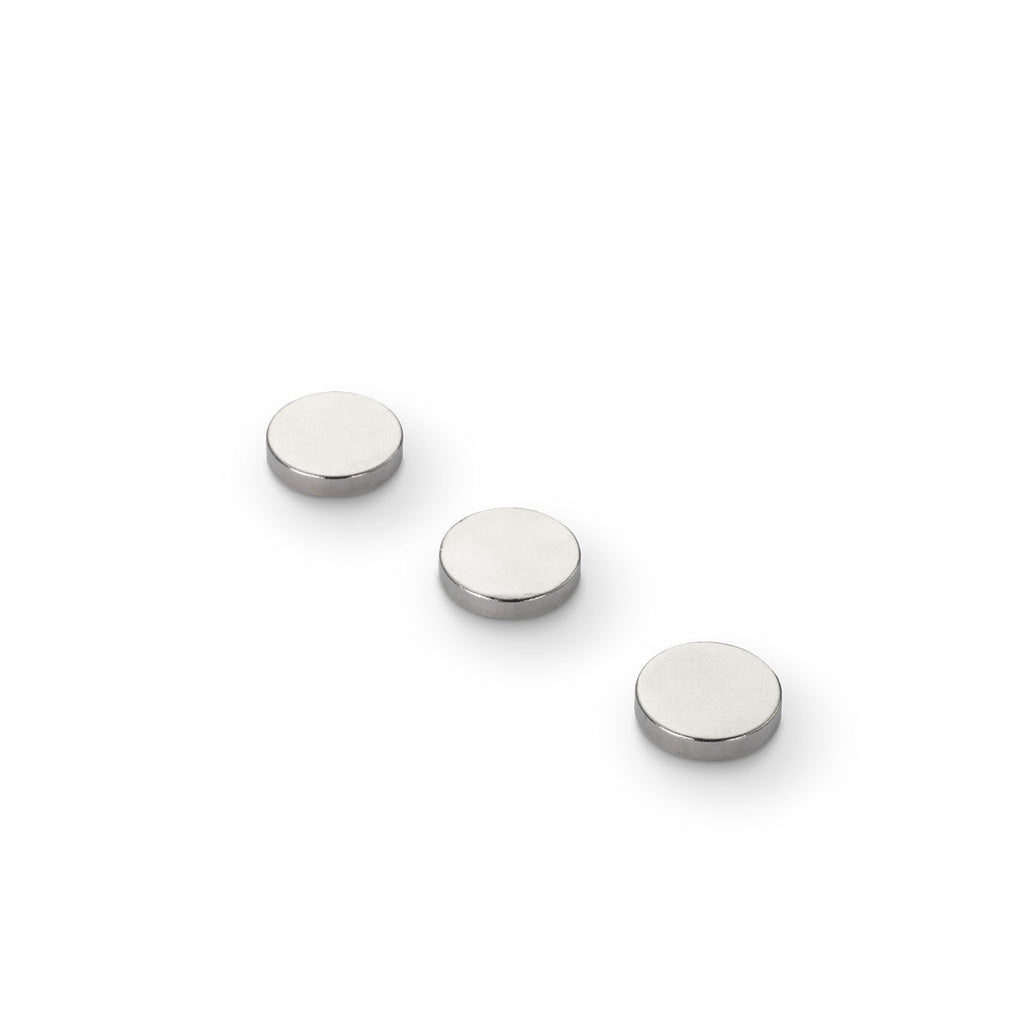

supaneo® Neodymium Disc N35 10mm diameter x 2mm (A)

NM/D/0100/0000/0020

Can’t find the size you are looking for? Contact us for bespoke sizes.

Product Variants
Thickness
1mm
2mm
4mm
3mm
5mm
6mm
7mm
Thickness: 1mm
Thickness: 2mm
Thickness: 4mm
Thickness: 3mm
Thickness: 5mm
Thickness: 6mm
Thickness: 7mm
Quantity
For quantities of this size please contact our sales team on +44 (0) 114 244 1171.
  • Price Drop
  • £0.26
  • Regular price £0.30
  • excludes VAT

supaneo® Neodymium Disc & Ring Magnets

A supaneo circular disc in N35 grade. Magnetised through the thickness and with a Nickel-Copper-Nickel coating, they work best being placed onto steel or magnet to magnet. Certain sizes are suited to being in a steel housing to perform in concentrated closed-circuit assemblies. The maximum operating temperature for these magnets is 80℃.

Just like many of our magnets, our supaneo Discs are used in many industries such as closures and fastenings, digital printers, engineering, exhibition design and build, POS, retail display and marketing, shopfitting, and visual planning.

Thickness 2mm
Weight 0.4g
Diameter 10mm
Finish Nickel
Colour Silver
Magnetisation AXIAL
Pull Force 1.039kg
UOM Each
Product Description

A supaneo circular disc in N35 grade. Magnetised through the thickness and with a Nickel-Copper-Nickel coating, they work best being placed onto steel or magnet to magnet. Certain sizes are suited to being in a steel housing to perform in concentrated closed-circuit assemblies. The maximum operating temperature for these magnets is 80℃.

Just like many of our magnets, our supaneo Discs are used in many industries such as closures and fastenings, digital printers, engineering, exhibition design and build, POS, retail display and marketing, shopfitting, and visual planning.

Technical Specification
Thickness 2mm
Weight 0.4g
Diameter 10mm
Finish Nickel
Colour Silver
Magnetisation AXIAL
Pull Force 1.039kg
UOM Each
